Semi-Automatic Gear Pump Filling Machine | Precision Liquid Filling for Jam, Shampoo & More
Overview – Versatile Liquid Filling Solution
Our Semi-Automatic Gear Pump Filling Machine is a compact, accurate, and cost‑effective solution for liquid filling across a wide range of viscosities. Whether you need a jam filling machine for thick preserve or a shampoo filling machine for personal care products, this gear pump filler handles them all with ease. Ideal for small to medium production batches, laboratories, and start‑up businesses.
Key Features

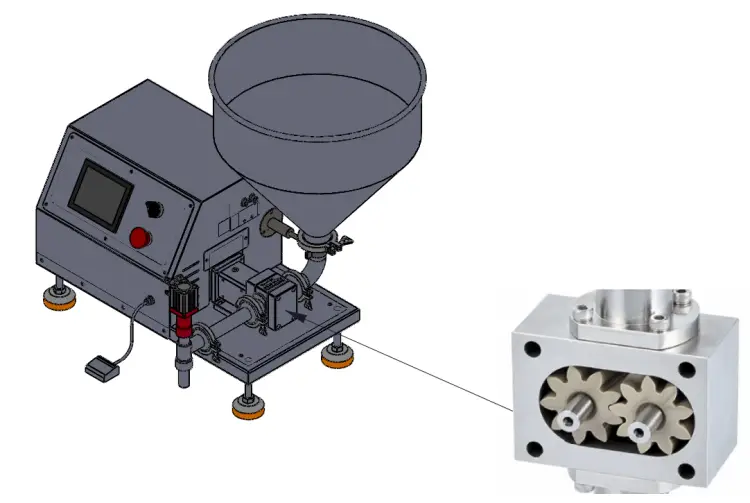

Gear Pump Metering Technology – Delivers consistent fill volumes without the pulsation of piston fillers. Gentle on shear‑sensitive products.
Semi‑Automatic Foot Pedal Control – Hands‑free operation: place container, press pedal, and fill. Simple and efficient.
Wide Viscosity Range – From water‑thin liquids to thick pastes (jams, honey, lotions, shampoos, sauces).
Stainless Steel Construction – All product contact parts are SS304/SS316, food‑grade and corrosion‑resistant.
Digital Fill Volume Adjustment – Set desired fill volume via touch panel or dial. Range from 10ml to 5000ml per cycle.
Easy Cleaning & Maintenance – Quick‑release pump head and tubing allow fast product changeover and thorough cleaning.
Anti‑Drip Nozzle – Prevents messy drips after each fill, saving product and keeping containers clean.

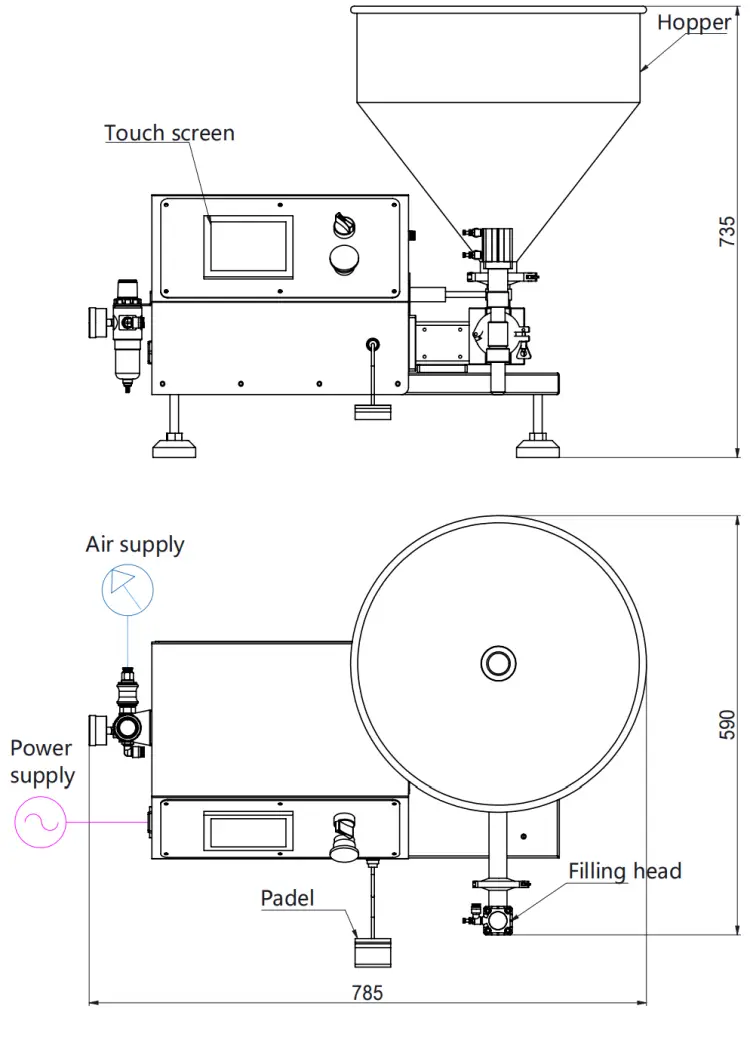

Drawing
Technical Specifications
Parameter | Specification |
|---|---|
Model | BCC-T1000 |
Voltage | 220V 50/60HZ |
Power | 800W |
Filling range | 50ml-10L |
Air pressure | 0.4-0.6Mpa |
Air consumption | 5L/min |
Dimension | 87×71×60cm |
Weight | 45KGS |
Material of Contact Parts | SS304 / SS316, food-grade seals (PTFE, silicone) |
Applications – One Machine, Many Products
This gear pump filler is the perfect liquid filling machine for:
Jam filling machine – Thick fruit preserves, marmalade, honey, chocolate spread.
Shampoo filling machine – Shampoo, conditioner, body wash, liquid soap.
Food & Beverage – Cooking oil, syrup, sauce, ketchup, salad dressing, juice.
Cosmetics & Personal Care – Lotion, cream, toner, gel, face wash.
Chemicals – Detergent, lubricant, antifreeze, adhesive (compatible materials).
Why Choose This Semi-Automatic Gear Pump Filler?
✅ No product contamination – Gear pump design has no dead corners, easy to sanitize.
✅ Consistent fill accuracy – Digital control ensures every container gets the exact same volume.
✅ Versatile – Works equally well as a jam filling machine (thick) and as a shampoo filling machine (medium viscosity).
✅ Low maintenance – Few moving parts, durable gear pump resists wear.
✅ Space‑saving – Small footprint, fits on any tabletop or workbench.
✅ Foot pedal operation – Leaves both hands free to handle containers.
Optional Accessories
Heated hopper with agitator (for products that solidify at room temperature, e.g., honey, chocolate)
Nozzle sets for different container openings
Ideal for Small & Medium Businesses
Whether you are filling jars with homemade jam or bottles with organic shampoo, this semi‑automatic gear pump filler gives you professional results without a big investment. Upgrade from manual filling to accurate, repeatable, and fast liquid filling today.
